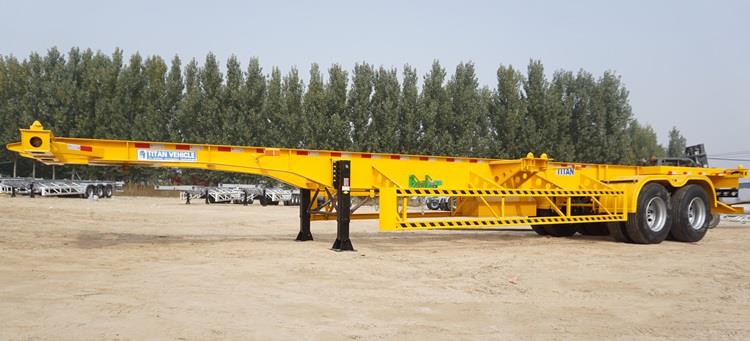

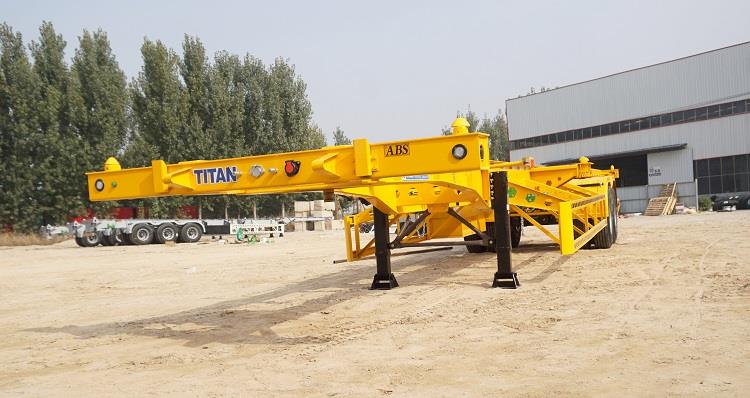

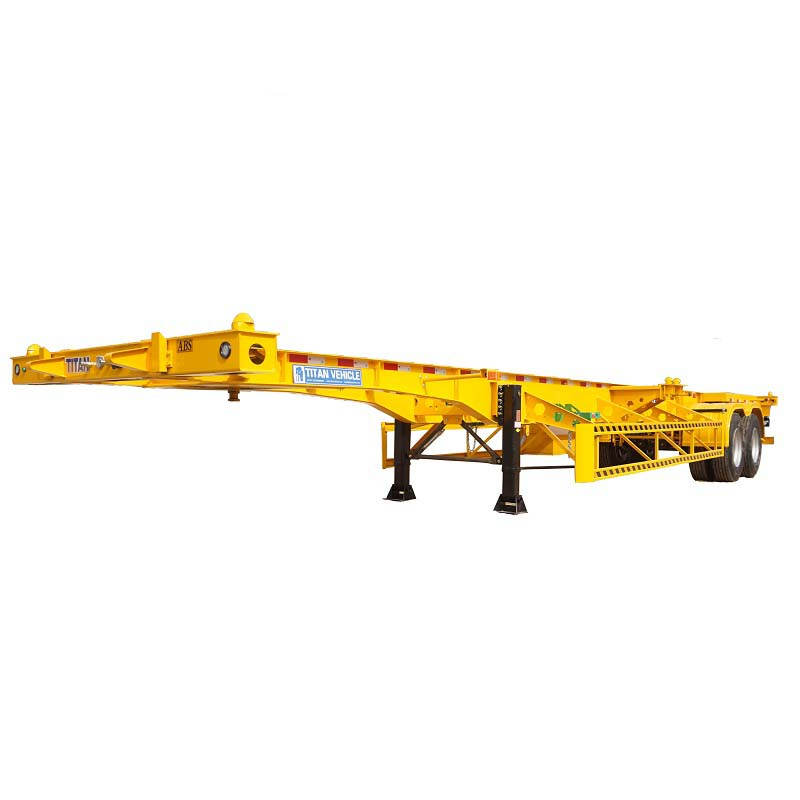

2 Axle 40FT Skeletal Trailer

Product Description:

2 Axle Skeletal Trailer is normally a simple fixed structure without much sophistication used to carry and transport containers from one point to another.

40ft Container Chassis Trailer framework is usually made of steel. This is where the containers get loaded and offloaded through the use of overhead cranes. 40 feet container trailer can be used for the transportation of containers of various lengths: 20ft or 40ft.

The common 40ft Container Chassis Trailer is easy to use and affordable. However, you will need auxiliary equipment such as the overhead cranes for loading and offloading the containers from the chassis.

2 Axle Skeletal Trailer | 40ft Container Chassis Trailer for Sale Price in Tanzania Morogoro

2 Axle Skeletal Trailer | 40ft Container Chassis Trailer for Sale Price in Tanzania Morogoro

Specifications:

Dimension(mm): 12500*2500*1550mm

Loading capacity(ton): ≤40T

Axles: 2 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 8 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Tips of 2 Axle Skeletal Trailer:

Don't just refuel, you also need to change the oil

There are many oils used in trucks, but the bad habit of not changing the oil, It mainly means engine oil.

There is an expiration date for engine oil. If your engine has not been changed for several years, it is just refueling. It is recommended that you check it quickly to avoid the wear of the engine parts and affect the life of the engine.

The engine should choose appropriate antifreeze according to the operating environment and engine operating conditions.

Antifreeze from different manufacturers and brands cannot be mixed.

For vehicles that have not been used for a long time, water must be drained to prevent freezing and cracking in winter.

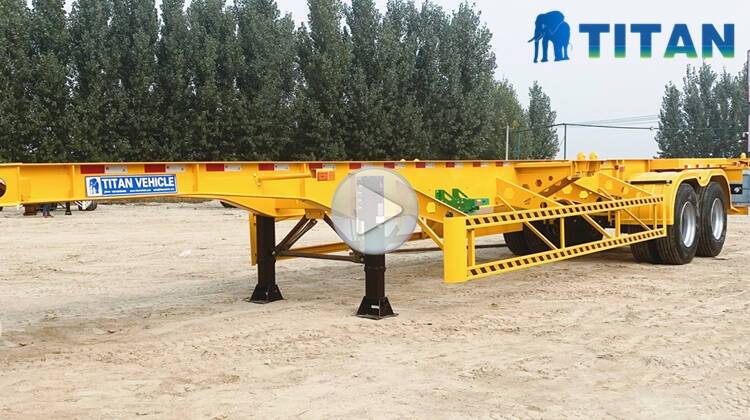

Through these videos, you can learn about different types of container chassis trailers, like 2/3/4 axle skeleton chassis for sale, 20/40ft  skeleton container, interlink container trailer, terminal trailer, and the process, testing, packaging and customer feedback, etc.
