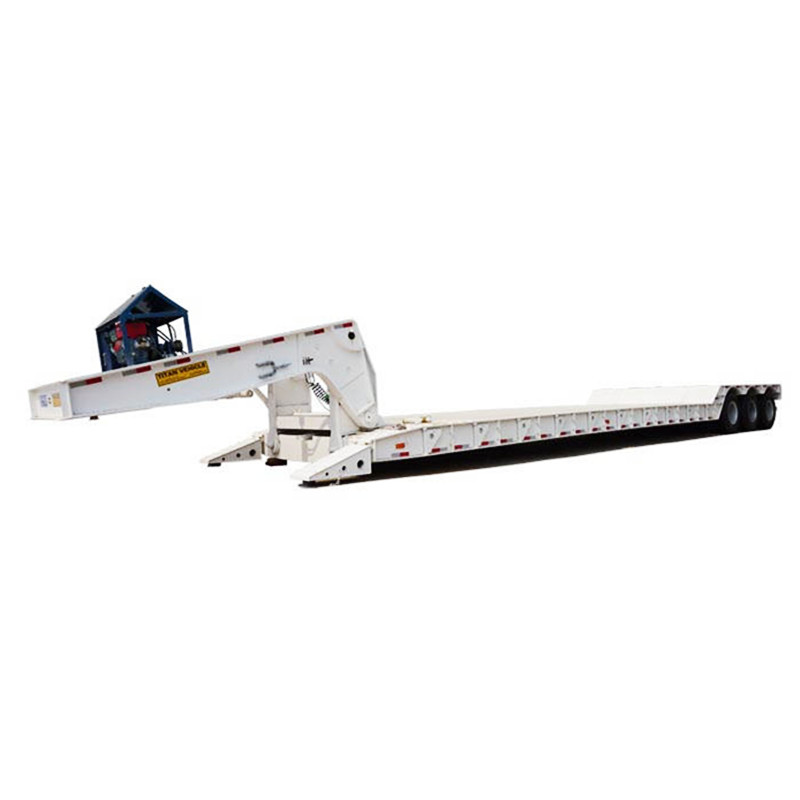

150 Ton Gooseneck Low Bed Trailer

Detachable Gooseneck Low Bed Trailer:

The gooseneck low bed trailer is used for trailers that carry oversize and overweight cargo. The basic form of a heavy trailer is a gooseneck low bed trailer. It generally has the following structure. The frame and the wheel axles and axles are mostly collinear, that is, there are two left and right axles on one axis, which is also called a two axis row. Common low bed gooseneck trailers have 2 to 7 axes.

150 Ton Detachable Gooseneck Low Bed Trailer for Sale in Tanzania Dar es Salaam

150 Ton Detachable Gooseneck Low Bed Trailer for Sale in Tanzania Dar es Salaam

150 Ton Detachable Gooseneck Low Bed Trailer for Sale in Tanzania Dar es Salaam

Gooseneck Low Bed Trailer Specification:

Dimension: 17000mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 900*22.5

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container

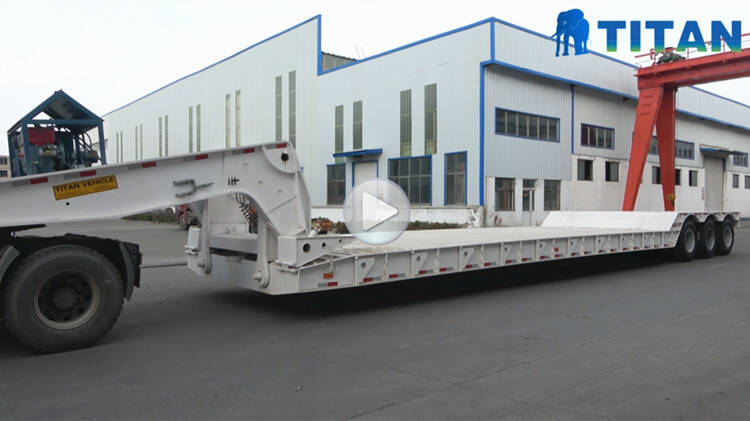

Through the video, you can know different types of low bed gooseneck trailer, gooseneck low bed trailer, detachable gooseneck low bed trailer, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
