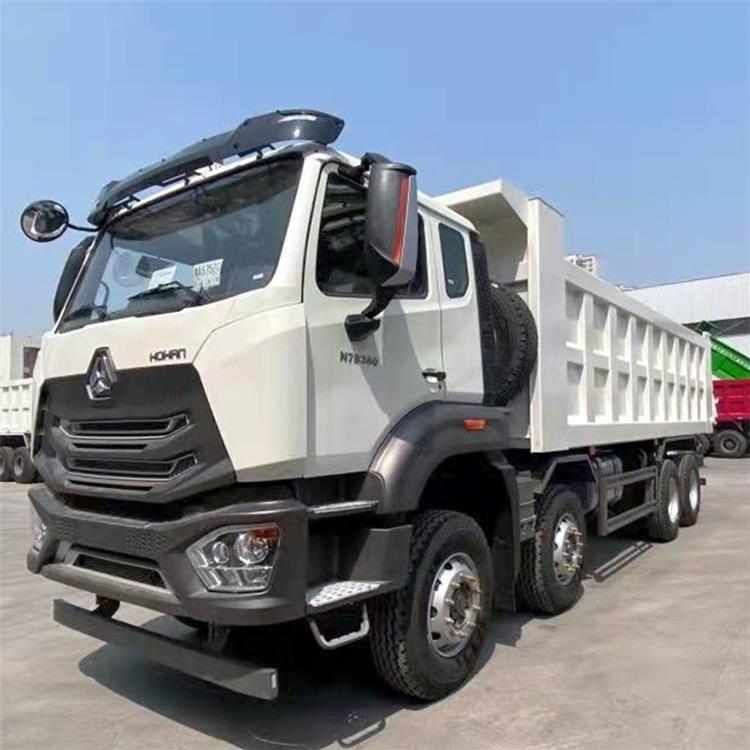

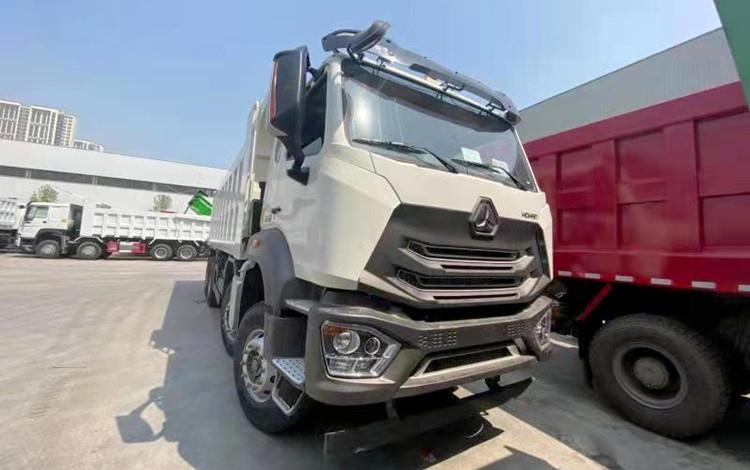

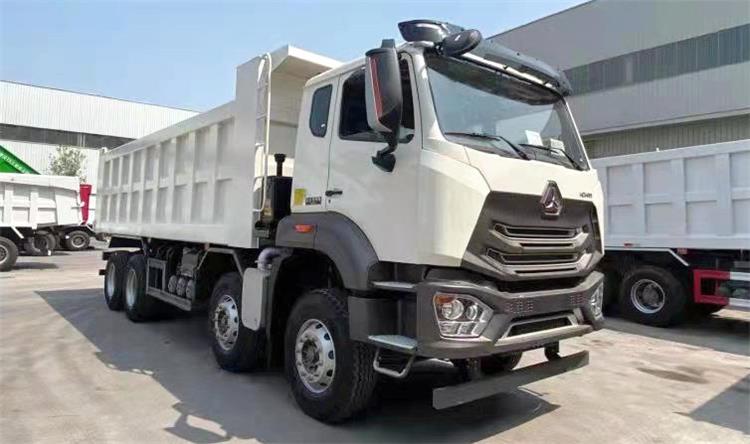

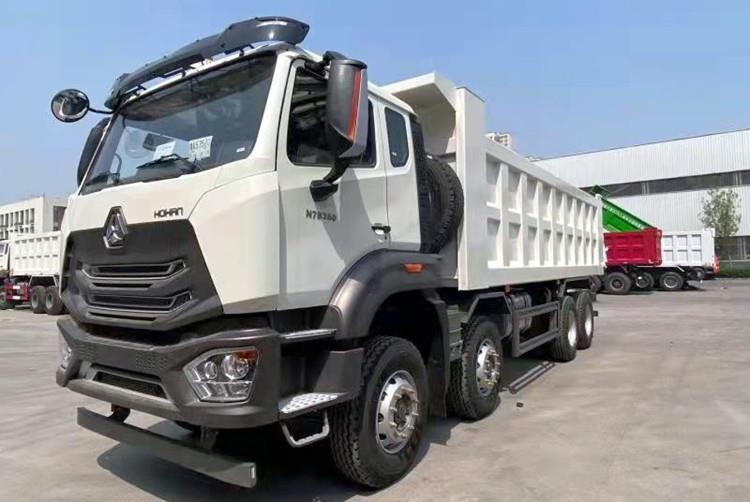

HOHAN 8x4 Dump Truck

Description:

SINOTRUCK HOHAN 8x4 dump truck own the elegant appearance, strong operation system and excellent safety. Hohan 30 ton dump truck has won the hearts of so many African customers due to its power, stability, and low cost of maintenance.

You can choose howo n7 dump truck cargo body with front lifting type or middle lifting type which you prefered. The hydraulic sytem using HYVA brand or Domestic famouse brand. The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.

Sinotruck Howo N7 8x4 30 Ton Dump Truck for Sale in Tanzania Arusha

Sinotruck Howo N7 8x4 30 Ton Dump Truck for Sale in Tanzania Arusha

Sinotruck Howo N7 8x4 30 Ton Dump Truck for Sale in Tanzania Arusha

Howo n7 dump truck specification:

MODEL: ZZ3317N3566B

ENGINE:

Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water

cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system

Maximum output: 371PS (273kW) at 2000 rpm

Maximum torque: 1560Nm at 1200-1500rpm

Bore: 126mm

Stroke: 130mm

Displacement: 9.726L

CLUTCH: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance

TRANSMISSION: Transmission, model HW19710, 10 forward and 2 reverse  Ratio: 5.73

FRONT AXLE: New HF9 series, with drum brake system

REAR AXLE: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.

STEERING: ZF8118, hydraulic steering with power assistance  Ratio: 22.2-26.2:1

WHEELS&TYRES:

Rims: 8.5-20,10 hole-steel

Types: 12.00R20

CARGO BODY: 7300*2300*1500, bottom 8mm, side 6mm, Middle lift system

DRIVER CAB:

H77L, long cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner

DIMENSIONS(in mm):

Wheel base (mm): 1800+3500+1350

Front wheel track (mm): 2022/2041

Rear wheel track (mm):1830/1830

Overhang(front/rear) (mm):1500/2295

Approach angle(°):19

Departure angle(°):20

Overall Dimension (mm):11745x2496x3550

WEIGHT(in kg):

Permissible loading capacity (kg):16000

Dead weight (kg):15000

Gross vehicle weight (kg):31000

Front axle loading capacity (kg):2*9000

Rear axle loading capacity (kg):2*16000

PERFORMANCE:

Maximum driving speed(km/h):75(reference data)

Maximum gradeability (%):36

Minimum ground clearance(mm):314

Minimum turning radius (m):15

Fuel consumption(L/100km):40(reference data)

Advantages of howo n7 dump truck:

Weichai WP10H400E62 engine is the heart of this truck. This inline six-cylinder turbo diesel engine is with a displacement of 9.5 liters.It’s maximum output a is  294KW and power of 400 horsepower.

Matching the WP10H engine is the Sinotruk HW19712 gearbox with a total of 12 gears. The highest gear is the direct gear and the speed ratio is 1. The main box of this transmission is a straight double-shaft structure, the auxiliary box is a planetary structure, and the maximum input torque is 1900 Nm. In addition, a HW50 direct-connected power take-off is installed on the gearbox for dump truck lifting.

For the front axle, howo dump truck is equipped with the HR9 front axle, using a multi-leaf spring suspension of 9 steel plates, the front axle brake is disc brakes, and a protective cover is added to the entire braking system, which can effectively prevent splash to damage the brake disc and caliper.

The rear axle uses SINOTRUK  AC16 model wheel-side reduction axle with automatic adjustment arm. The rear axle speed ratio is 4.77. The rear axle uses traditional drum brakes, which has stronger braking force. In addition, the rear axle is also equipped with a lateral stabilizer bar, It provides well guaranteed for driving stability when the vehicle is running on complex road conditions.

About SINOTRUK:

SINOTRUK is China's first heavy duty truck manufacturer, initially founded in 1956 and the cradle of China's heavy duty truck industry. SINOTRUK once manufactured China's first heavy duty truck, and it is China's first company to comprehensively introduce foreign heavy duty truck manufacturing technology of complete vehicle.

Today, SINOTRUK has developed into China's largest heavy duty truck manufacturing base and made significant contributions to the development of China's heavy duty truck industry and national economic growth.

SINOTRUK has been adhering to implementing independent innovations, carrying out its leading strategy in technologies and building its core competitiveness with intellectual property rights. It has the most patents in China's automotive industry.

SINOTRUK’s main truck models include HOWO, HOWO A7, HOHAN, main truck types include truck tractor, tipper truck, cargo truck, truck chassis, fuel tanker truck, water tank truck, and other special trucks.
