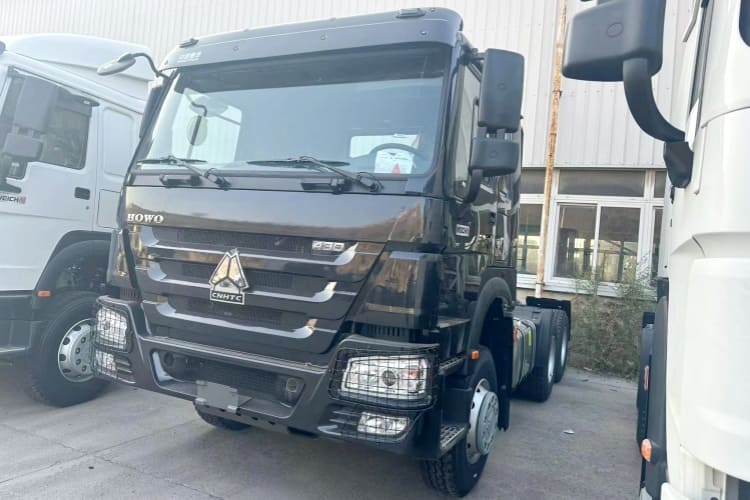

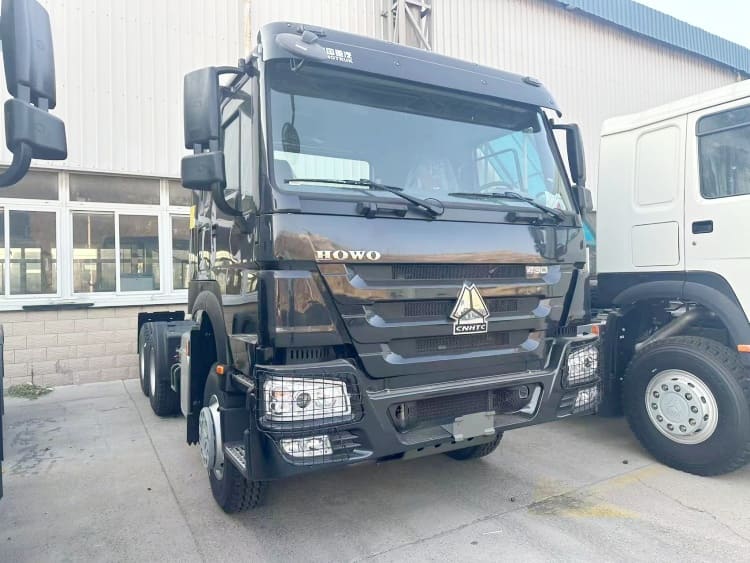

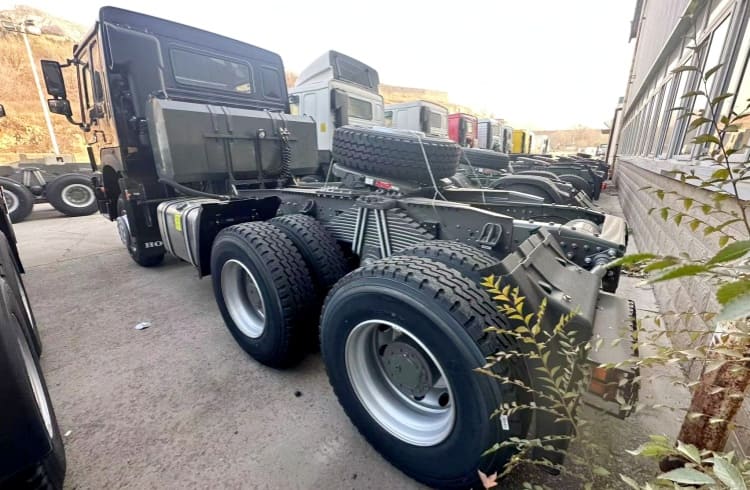

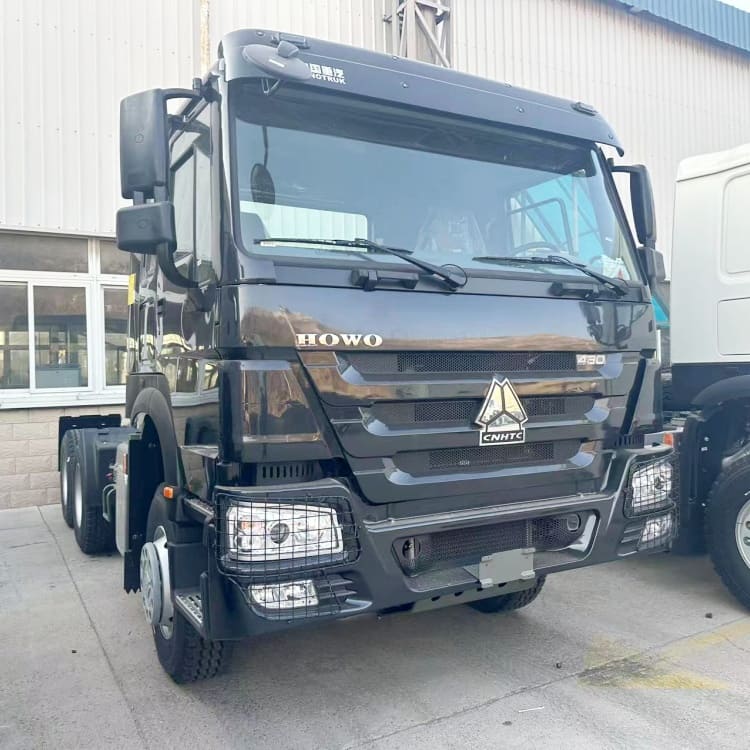

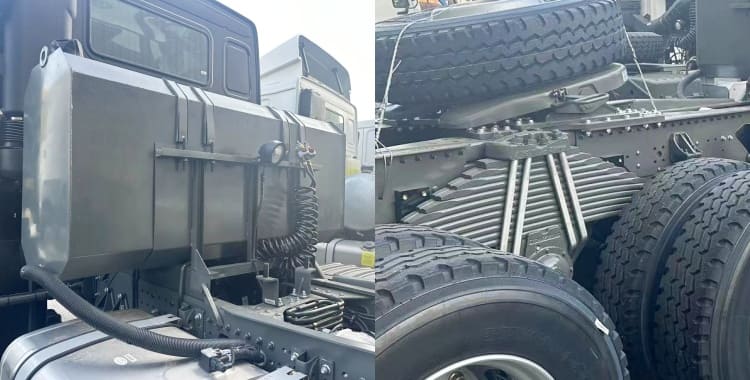

Howo 430 Truck Head 6x4

Howo 430 Truck Head Price:

This howo 430 truck head price is a howo new model of high-end heavy truck products newly developed by SINOTRUK using core assembly technology. Its appearance is high and overwhelming, showing the leadership of the King of Highway.

To unload the transported body part of the truck can not only tilt, but also turn. Moreover, the frame of the Howo truck head is able to rotate in different directions, which greatly simplifies the process of unloading in a limited space. Due to this feature,  howo 430 truck head has an extended functional potential.

Howo Truck for Sale in Tanzania | Sinotruk Howo 430 Truck Head Price in Dar es Salaam

Howo Truck for Sale in Tanzania | Sinotruk Howo 430 Truck Head Price in Dar es Salaam

Howo Truck for Sale in Tanzania | Sinotruk Howo 430 Truck Head Price in Dar es Salaam

Howo Truck for Sale in Tanzania | Sinotruk Howo 430 Truck Head Price in Dar es Salaam

Howo Truck for Sale in Tanzania | Sinotruk Howo 430 Truck Head Price in Dar es Salaam

Howo 430 Truck Head Specification:

Model: ZZ4257V3241W

Engine:

Engine model: D12.42-20, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinders in-line with water cooling, turbo-charging & inter cooling, mechanical high-pressure oil pump system

Maximum output: 430PS (309kW) at 2000 rpm

Maximum torque: 1820Nm at 1100-1400rpm

Bore: 126mm

Stroke: 155mm

Displacement: 11.596L

Clutch: SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance

Transmission:

Transmission, model HW19710, 10 forward and 2 reverse

Ratio: 4.42   4.8  5.73

Front Axle: New HF9 series, with drum brake system

Rear Axle: HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.

Steering: ZF8118, hydraulic steering with power assistance

Ratio: 22.2-26.2:1

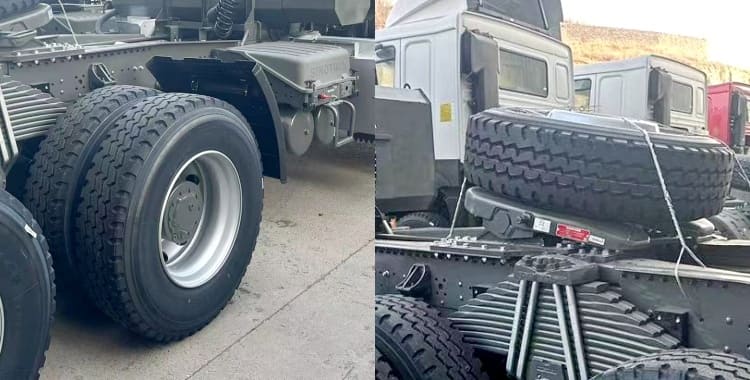

Wheels&Tyres:

Rims: 8.5-20,10 hole-steel

Types: 12.00R20 Option:12R22.4,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20

Driver'sCab: Long cab, all-steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, VDO electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner, warming light

Dimensions inmm:

Wheel base (mm): 3200+1350

Front wheel track (mm): 2022/2041

Rear wheel track (mm):1830/1830

Overhang(front/rear) (mm):1500/725

Approach angle(°):16

Departure angle(°):70

Overall Dimension (mm): 6800x2496x2958

Weight in kg:

Rated loading capacity at fifth wheel (kg):15660

Dead weight (kg):9210

Gross vehicle weight (kg):25000

Gross combination weight（kg）：7000

Front axle loading capacity (kg):9000

Rear axle loading capacity (kg):2*16000

Performance Maximum driving speed(km/h):102(reference data)

Maximum gradeability (%):33

Minimum ground clearance(mm):265

Minimum turning radius (m):18.5

Fuel consumption(L/100km):40(reference data)
